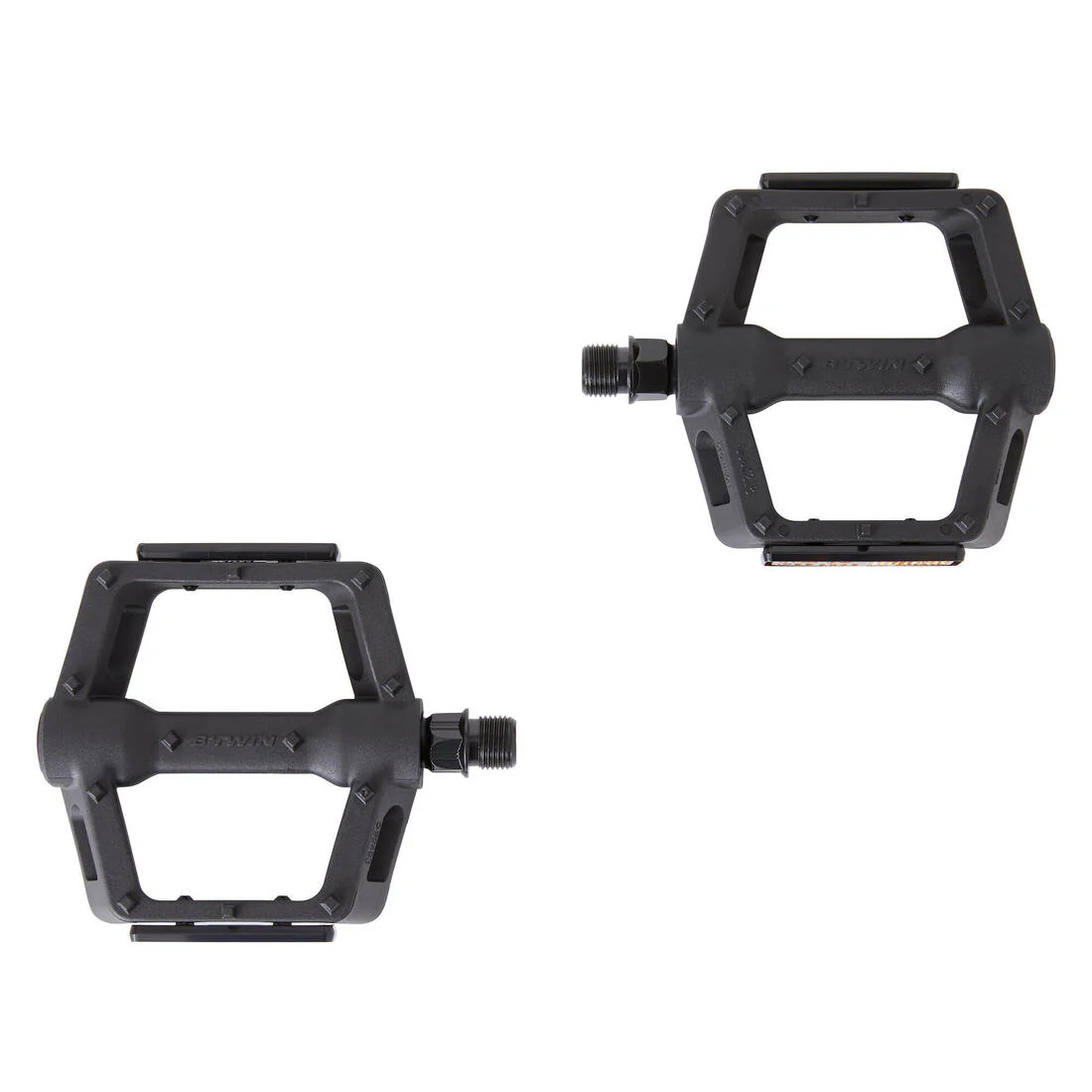

Our 520 flat pedals are made from resin and designed for adults doing sport mountain biking.

Features:

Type of pedal: flat Compatible: toe cages no Screw thread: English thread 9/16"" Dimensions: Length 92mm/ width 98mm Axle: chromoly steel Body: PP resin Cage: PP resin Bearing: sliding bearings Weight: 0.324 kg

How do I remove these bicycle pedals?

Position your bike so that it is stable and at the correct height, as if on a bike stand.Using a pedal wrench (ref:8938257), remove your pedals.Please note that the left pedal is unscrewed clockwise and the right pedal is unscrewed anticlockwise.

How do I fit these bicycle pedals?

Each pair includes a left pedal (marked with an L or a mark) and a right pedal (marked with an R or no mark).If in doubt, check the packaging.Apply grease (Ref:8874174) to the pedal thread to prevent seizing.Use a pedal wrench to screw in: Right Pedal (R): Screw clockwise. Left pedal (L):Screw anticlockwise.

Instructions for use

Avoid pushing through your heel or arch as you pedal as this can lead to pain and fatigue over time. In the interests of comfort and for efficient pedalling, your foot should be positioned such that the ball of your foot is just above the pedal's spindle.If you need help getting the right position, cleats can help.

Security

There's nothing more visible at night that a moving, lit-up object. With reflectors on the front and back, our 520 flat mountain bike pedals help make you even more visible to other road users. Because they are made from resin, the 520 mountain bike pedals are less likely to injure your shins and calves if the pedal spins back unexpectedly.

Materials

Axle: Steel Body: PP resin Bearing: sliding bearings

Enjoy increased stability and control with no extra weight, thanks to these flat resin pedals' width and molded studs.

Traction

The moulded resin studs provide good grip.

Stability

Large underfoot surface for stability and control.

Our 520 flat pedals are made from resin and designed for adults doing sport mountain biking.
